Plant engineering on skid

Piping

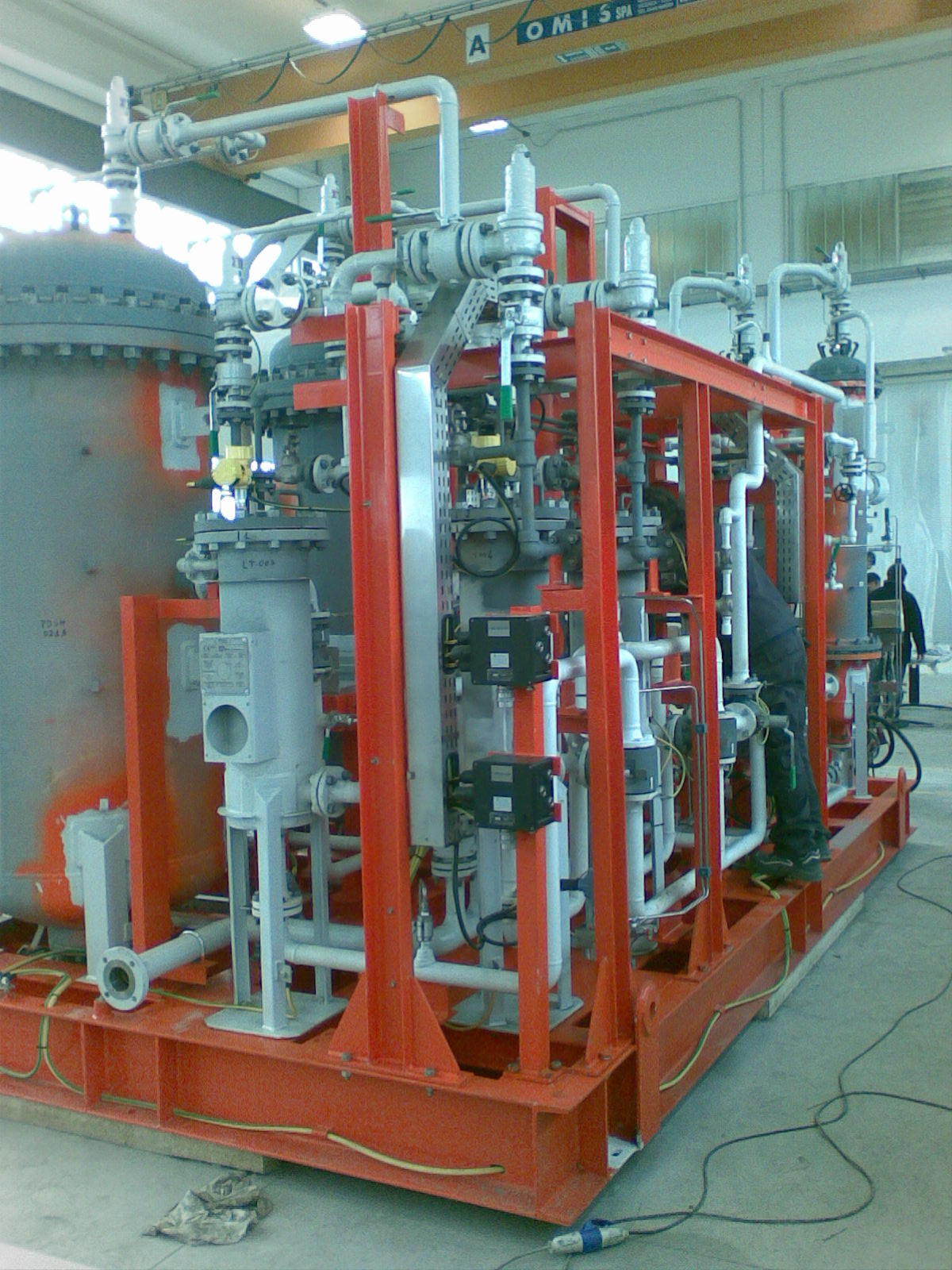

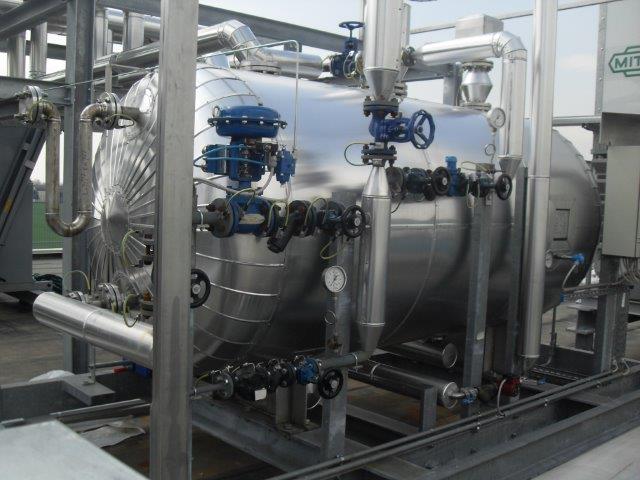

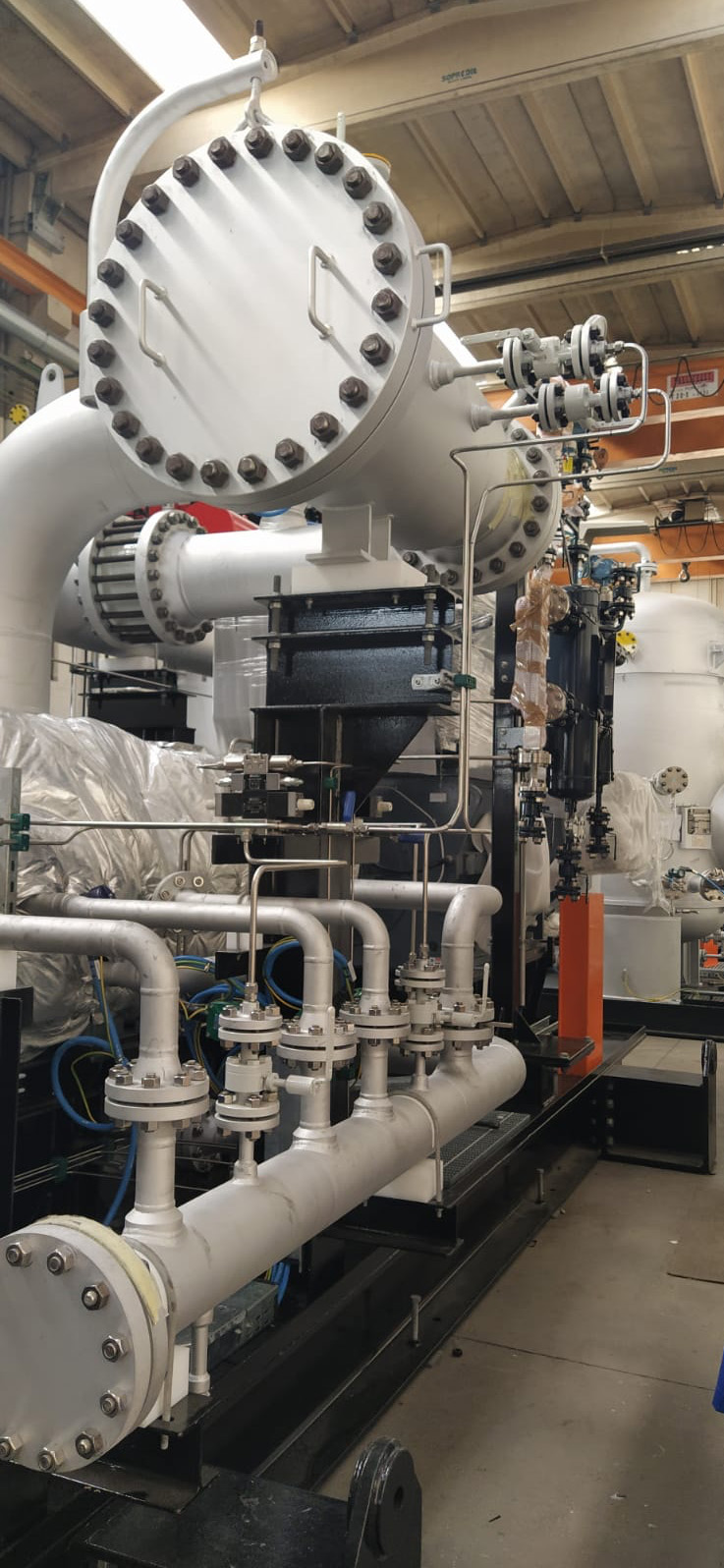

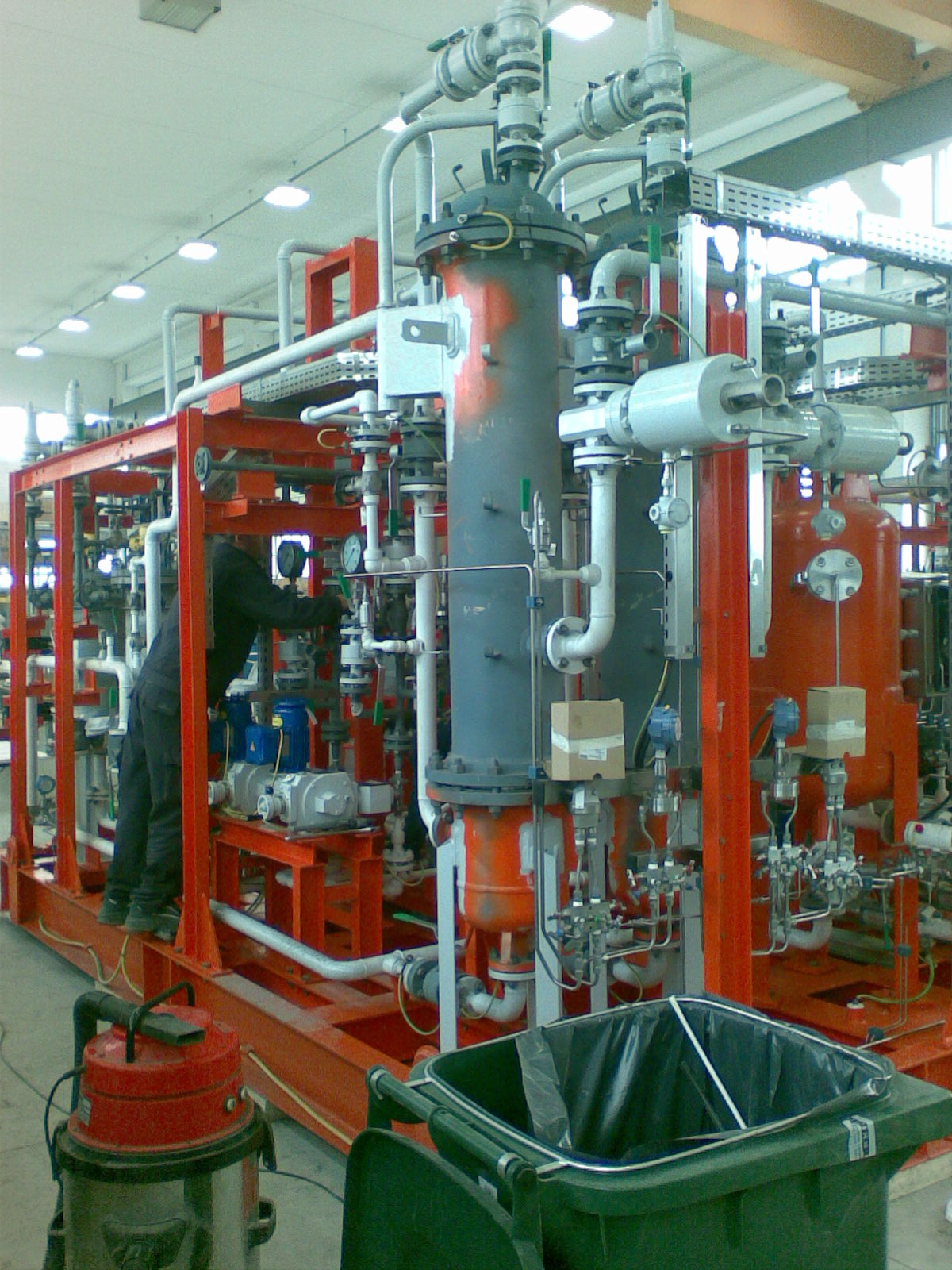

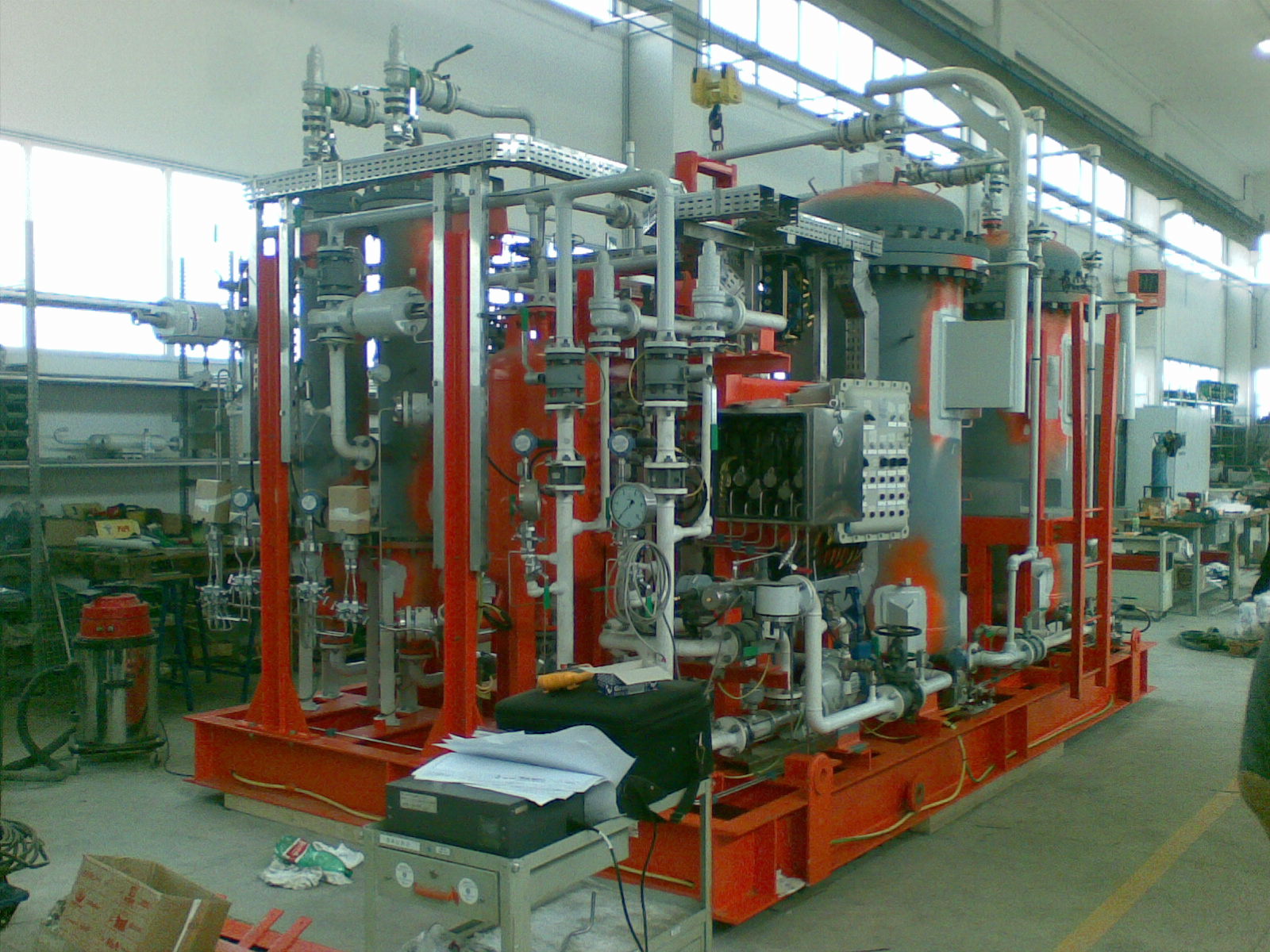

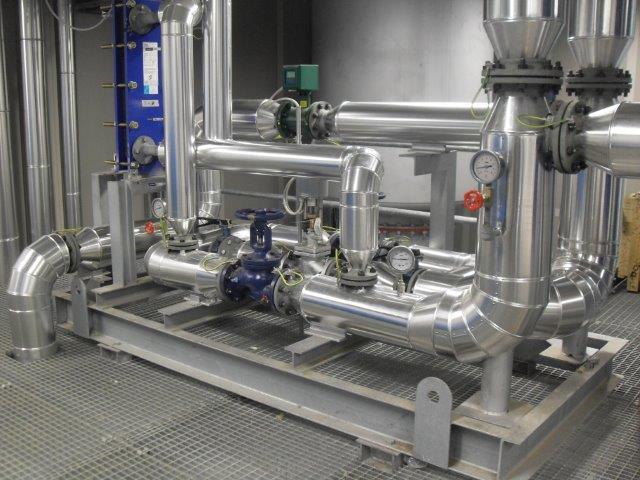

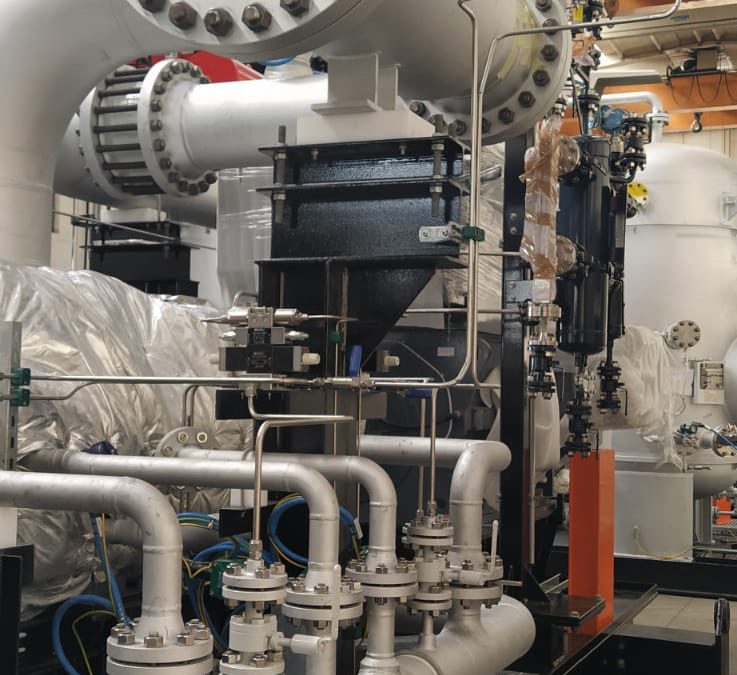

Lo Skid, letteralmente The Skid, literally “sled” or “skid,” is technically the base on which modular, self-contained industrial equipment is installed to serve more complex industrial plants.

Operational application

  • P&ID process

  • Final Constructional Design of floor plans and piping complete with views and sections

  • Sketching and listing for material procurement

  • Design and drawing of piping supports

  • Stress-Analysis piping calculation

  • P&ID process

  • Skid lay-out study

  • Construction drawing and skid carpentry calculation

  • 3D modeling using the most up-to-date software in the industry

  • Civil works input
